carto-flow

Release Build Status codecov Commit Activity License

A Python library for creating diverse types of cartograms and proportional spatial visualizations.

Carto-flow provides tools to transform geographic data into meaningful cartographic representations where visual properties correspond to data values. The library supports multiple cartogram types:

  • Flow-based cartograms: Smoothly morph geometries while maintaining spatial contiguity and recognizable shapes, where region sizes are proportional to a data variable (e.g., population, GDP)
  • Symbol cartograms: Represent regions as proportional symbols (circles, squares, hexagons) or custom tile maps
  • Proportional cartograms: Split and shrink shapes to show proportions within regions
  • Dot density cartograms: Visualize data through randomly distributed points

The library uses advanced diffusion-based algorithms for smooth morphing, physics-based simulation for optimal symbol placement, and provides tools for multi-resolution processing and batch operations.

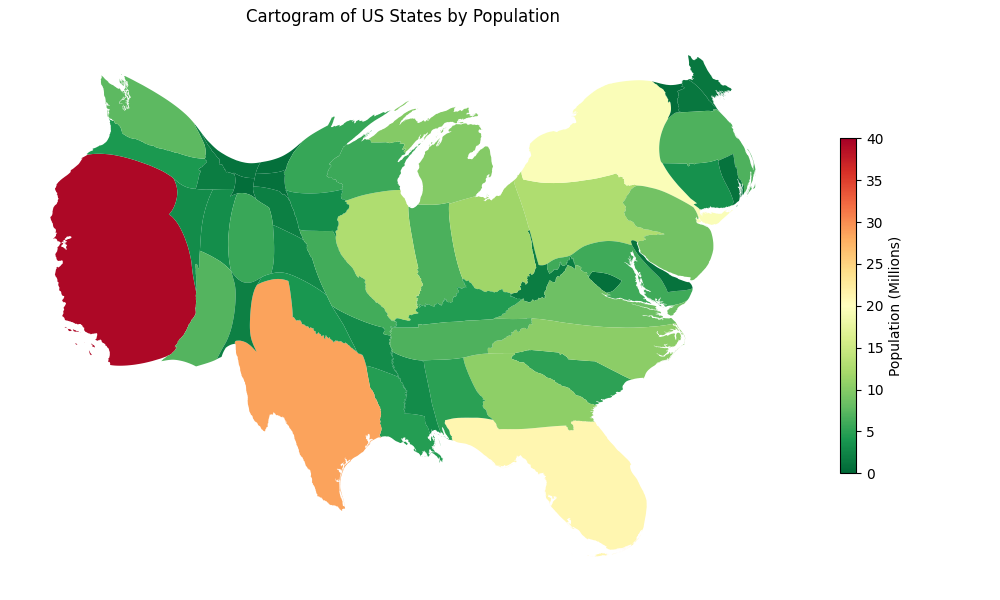

Example Flow Cartogram showing population distribution

This example shows a flow-based cartogram where region sizes are proportional to population, demonstrating how carto-flow preserves spatial relationships while transforming geometries to reflect data values.

Installation

pip install carto-flow

Requires Python 3.9+ and NumPy 2.0.2+.

Quick Start

Create a population flow cartogram from a GeoDataFrame:

import carto_flow.flow_cartogram as flow
import carto_flow.data as examples

us_states = examples.load_us_census(population=True)

# compute flow cartogram
result = flow.morph_gdf(
    us_states, 'Population'
)

result.plot('Population (Millions)')

Documentation

Choose the documentation that best fits your needs:

Tutorials

Step-by-step guides to learn carto-flow through hands-on examples and real-world scenarios.

How-to Guides

Practical guides showing how to accomplish specific tasks and solve common problems.

Reference

Complete API reference and technical documentation for all modules and functions.

Explanations

Conceptual guides that explain the underlying principles and design decisions behind carto-flow.

Contributing

We welcome contributions! See our Contributing Guide for details on how to get started.

License

This project is licensed under the terms specified in the LICENSE file.
