Visualize Tiling Grid¶

Visualize the tiling grid used to create the symbol cartogram.

Load data and create the symbol cartogram.

import matplotlib.pyplot as plt

import carto_flow.data as examples
import carto_flow.symbol_cartogram as smb

us_states = examples.load_us_census(population=True, simplify=200)

# use a grid-based layout with hexagonal tiling
# and a square symbol
symbol_carto = smb.create_symbol_cartogram(
    us_states,
    layout=smb.GridBasedLayout(tiling=smb.HexagonTiling()),
    styling=smb.Styling(symbol="square"),
    show_progress=False,
)

Plot the symbol cartogram

fig, ax = plt.subplots(1, 1, figsize=(8, 6))

result = smb.plot_tiling(
    symbol_carto,
    ax=ax,
    show_symbols=True,
    show_assigned=True,
    show_unassigned=True,
    assigned_color="#e5e5e5",
    unassigned_color="0.95",
    tile_edgecolor="white",
    tile_linewidth=1,
    tile_alpha=1,
    facecolor="lightblue",
    alpha=1,
)

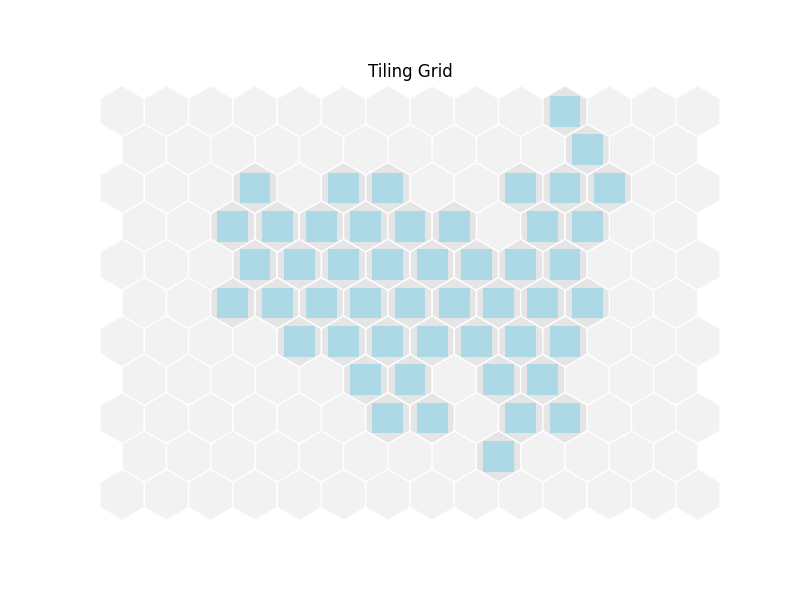

Tiling Grid

Total running time of the script: ( 0 minutes 3.517 seconds)

Download Python source code: plot_symbol_plot_tiling.py

Download Jupyter notebook: plot_symbol_plot_tiling.ipynb
